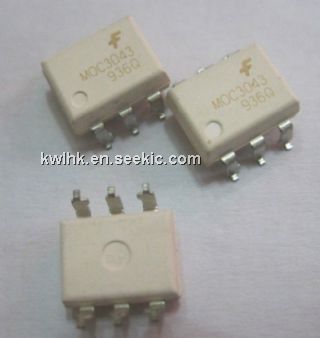

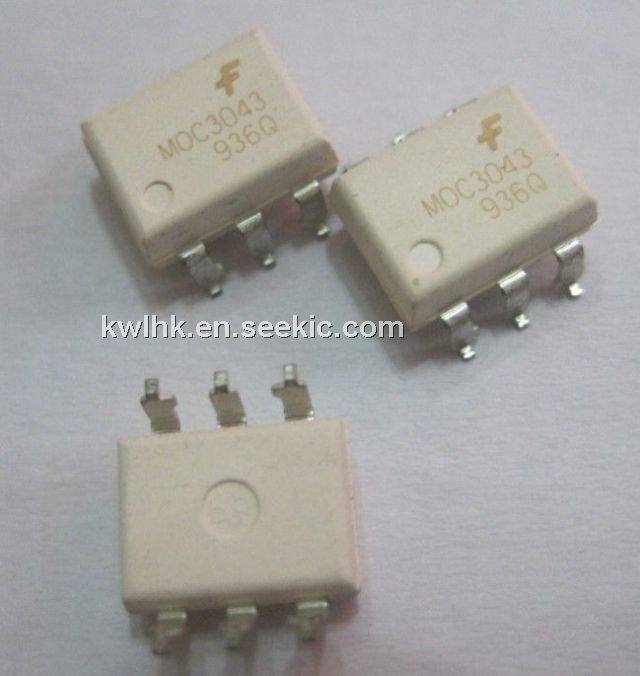

MOC3043

MOC3043, algaas infrared emitting diode, 60Hz, 250 mW, 115 VAC, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.47~0.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.56 / Piece
500 ~ 1000 :	0.52 / Piece
1000 ~ 1500 :	0.47 / Piece

PartNumber:: MOC3043

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 93+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-04

From Other Seller

Part Number:MOC3043
US $0.47 - 0.56
Quantity:

piece

Product Summary

The MOC3043 consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. Applications are (1)Solenoid/valve controls; (2)Lighting controls; (3)Static power switches; (4)AC motor drives; (5)Temperature controls; (6)E.M. contactors; (7)AC motor starters; (8)Solid state relays.

Parametrics

MOC3043 absolute maximum ratings: (1)Storage Temperature T STG All: -40 to +150 °C; (2)Operating Temperature T OPR All: -40 to +85 °C; (3)Junction Temperature Range T J All: -40 to +100 °C; (4)Isolation Surge Voltage (peak AC voltage, 60Hz, 1 sec duration)V ISO All: 7500 Vac(pk); (5)Total Device Power Dissipation @ 25°C Derate above 25°C P D All: 250 mW.

Features

MOC3043 features: (1)Simplifies logic control of 115 VAC power; (2)Zero voltage crossing; (3)dv/dt of 2000 V/μs typical, 1000 V/μs guaranteed; (4)VDE recognized (File # 94766), ordering option V (e.g., MOC3043VM).
